HMDs Cathula I.V. Cannula has Wings that are made up of nontoxic, medical-grade polypropylene compatible with any medication. The injection port and the receiving end of the wing have a 6% luer taper as per ISO:80369.The Needle is made from cold-rolled stainless steel strips. The tip of the needle has a short bevel ‘back’ cut point for easy catheterization and minimal pain and risk of perforation.
- Description
- components

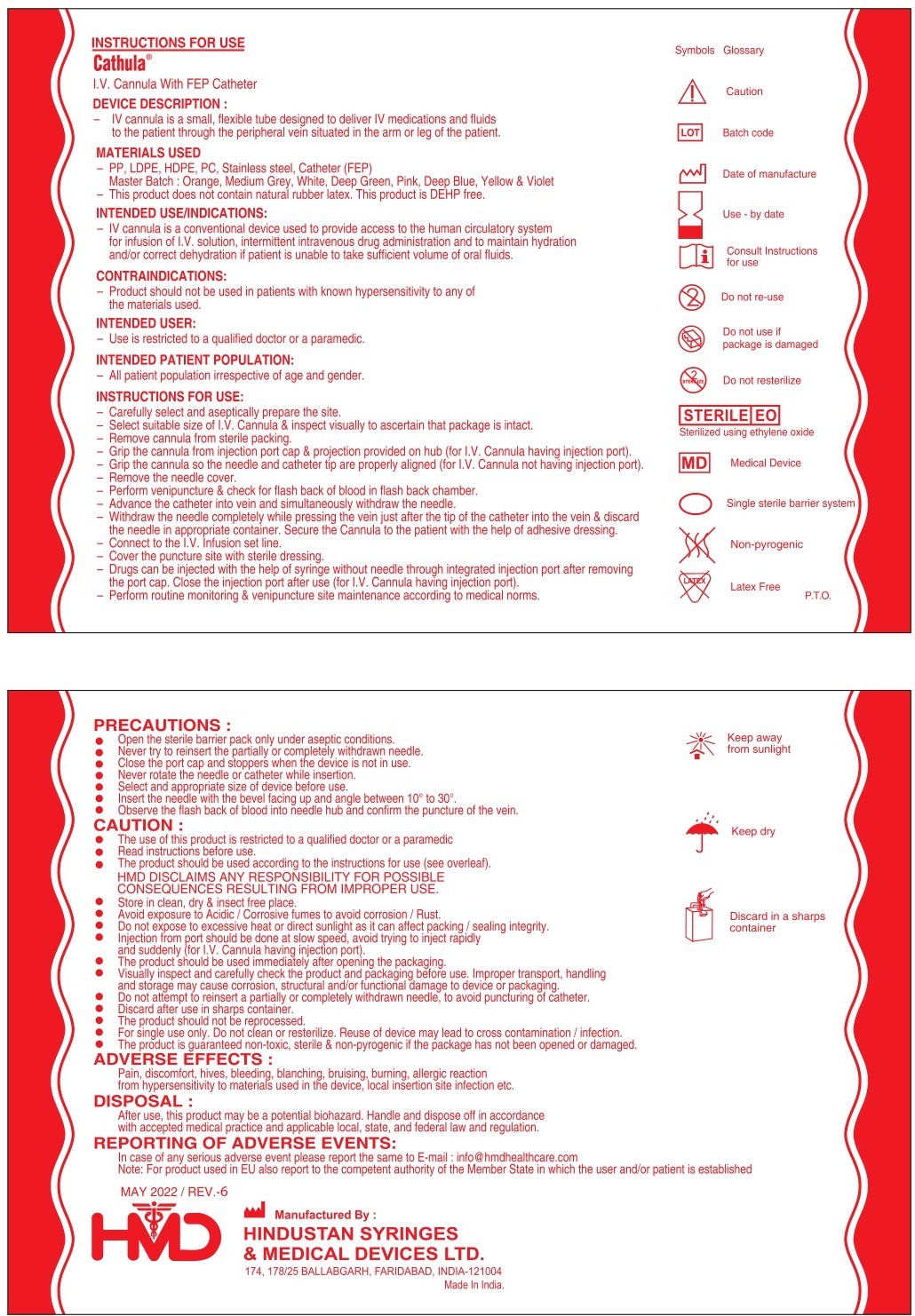

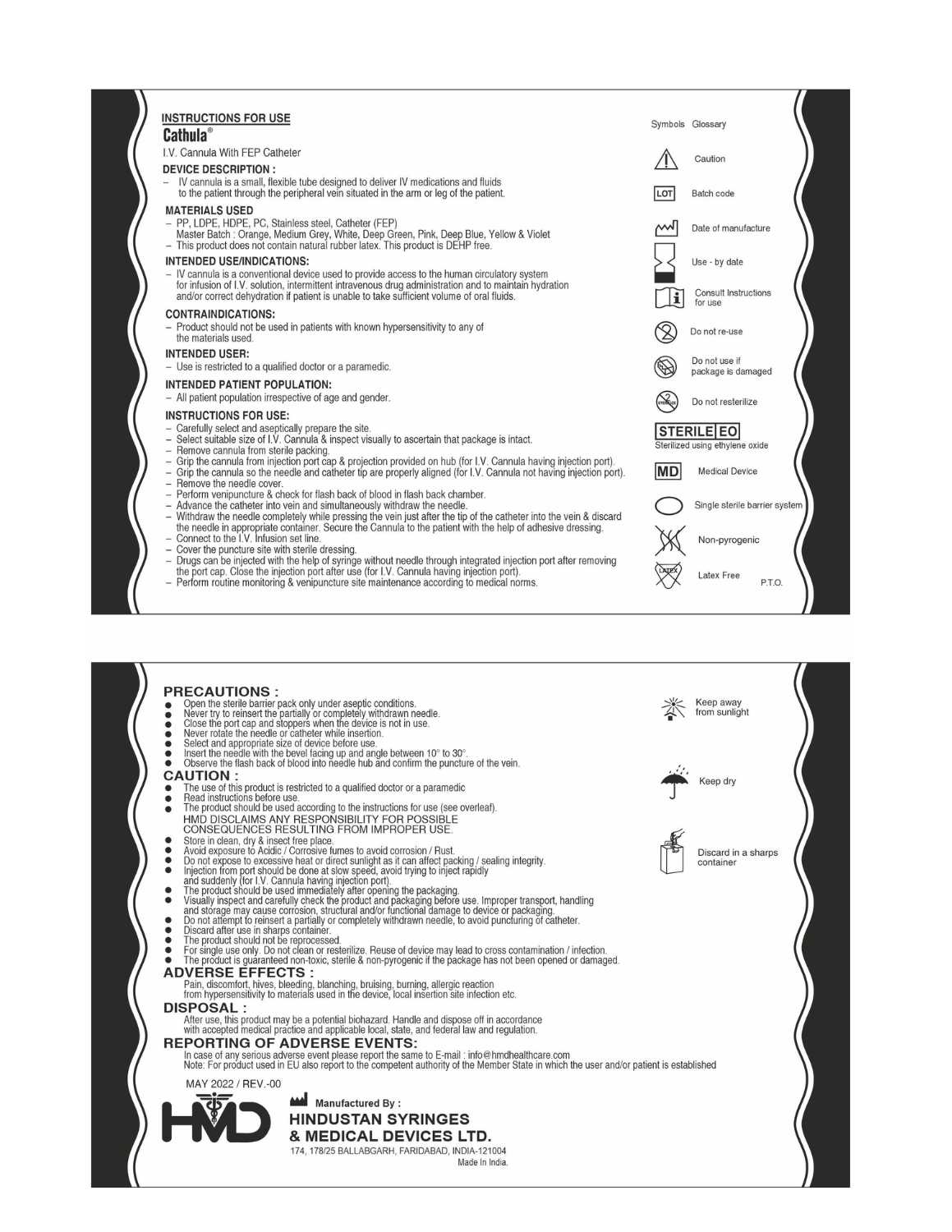

- IFU
- Infographic
- Video
The injection port and the receiving end of the wing have a 6% luer taper as per ISO:80369.The Needle is made from cold-rolled stainless steel strips.
Key Highlights
-
2 way/1 way I.V. Cannula with wings
-
It is provided with a low-pressure injection valve to facilitate extra medication and to prevent its backflow.
-
Medicine can be injected by a syringe without a needle thereby reducing the chances of infection and preventing needlestick injuries. The cost of a needle is also saved.
-
The valve is protected with easy to open Injection Port Cap.
-
Coloured Injection Port Cap for size identification.
-
It offers a safe and convenient method of atraumatic administration of medicines.
-
Angled & grooved wings offer easy fixation and prevent shifting & rolling of the cannula in the patient’s body.
-
Single-use, sterile, non-pyrogenic, and nontoxic.
-
FEP Catheters reduces force by 30% compared to PTFE Catheters
-
The catheter has 4 encapsulated radio-opaque stripes. If accidentally the tip of the Catheter is cut-off by the needle, it can be detected by x-ray.
-
Luer Lock is connected with a blood stopper which allows air to escape and prevents blood spillage.
Other Highlights
-
FEP Catheters reduces force by 30% compared to PTFE Catheters
-
The catheter has 4 encapsulated radio-opaque stripes. If accidentally the tip of the Catheter is cut-off by the needle, it can be detected by x-ray.
-
Luer Lock is connected with blood stopper which allows air to escape and prevents blood spillage
-
Flat base designed to improve skin contact and comfort
-
Manufactured using completely automated technology and goes through vision inspection to check the tip of the catheter among other aspects.
-
Easy to use packaging- without touching the products.
Product Range
| Colour Code | Gauge | Catheter Ext. DiaxLength(mm) | Water flow-rate (ml/min) |
|---|---|---|---|
| Orange | 14G | 2.20 x 45 | 310 |
| Grey | 16G | 1.70 x 45 | 200 |
| White | 17G | 1.50 x 45 | 140 |
| Green | 18G | 1.20 x 38 1.20 x 45 |
105 100 |
| Pink | 20G | 1.00 x 32 | 64 |
| Blue | 22G | 0.80 x 25 | 38 |
| Yellow | 24G | 0.70 x 19 | 16/22 |
| Violet
(without Injection Port) |
26G | 0.60 x 19 | 12/15 |
