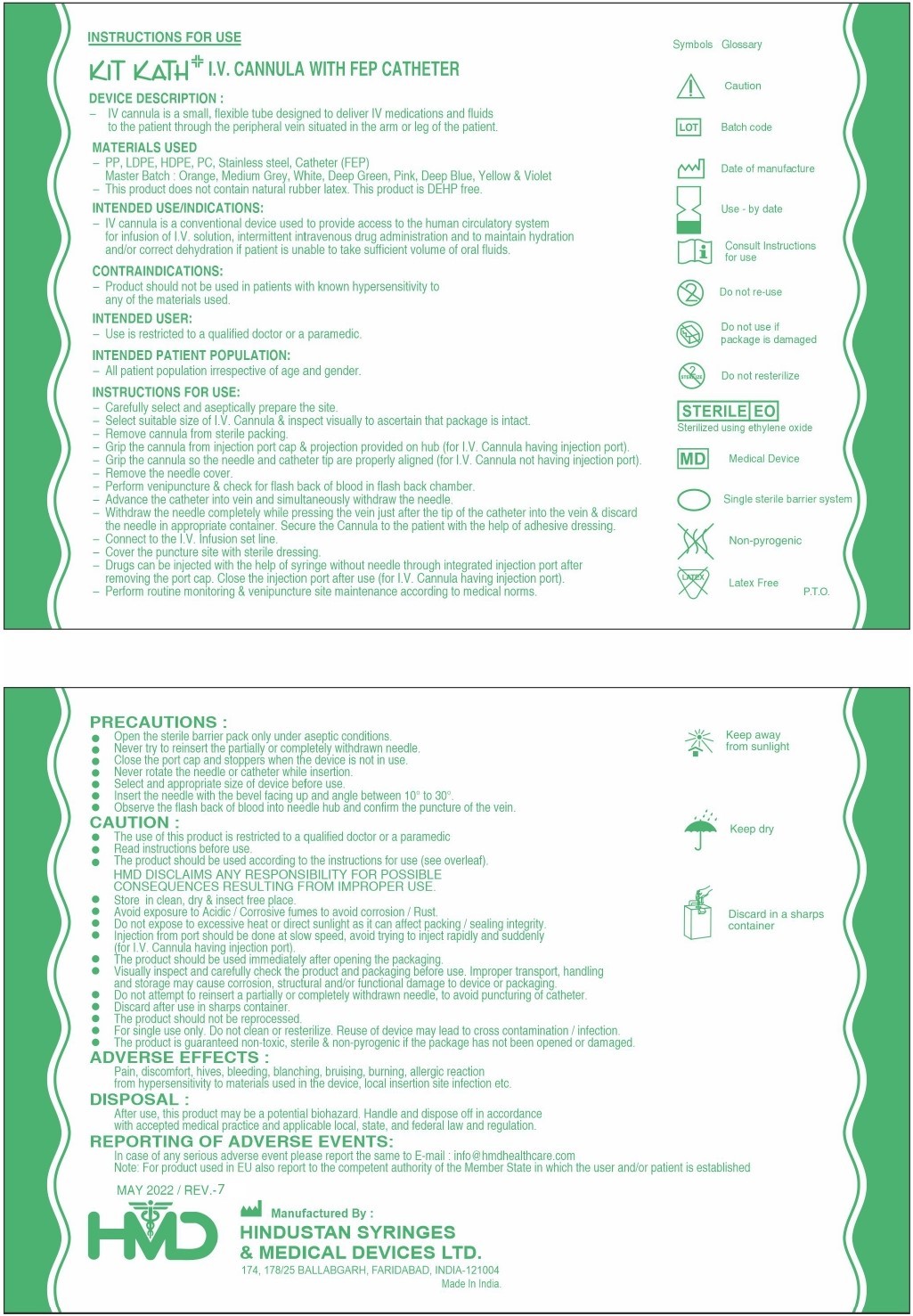

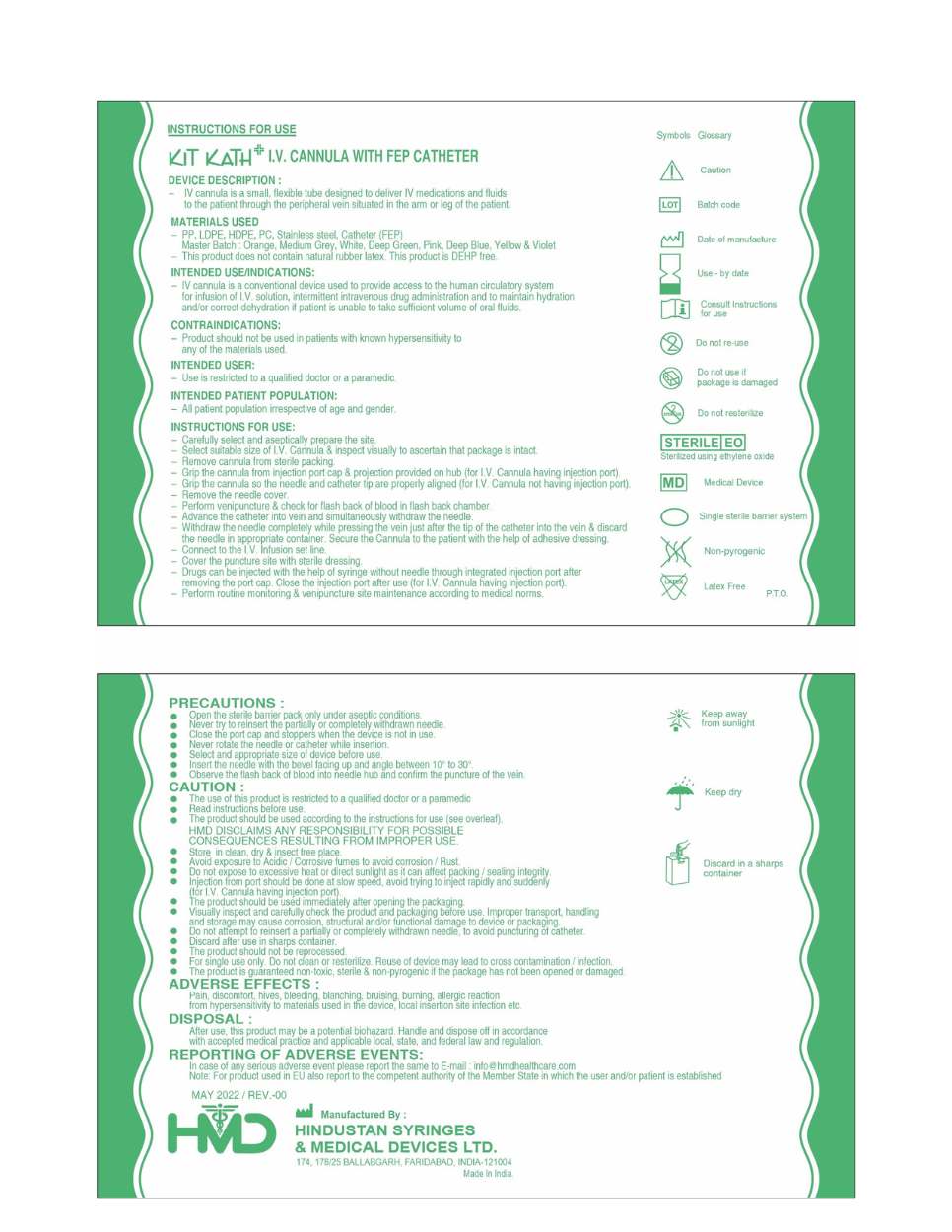

- IFU
- Infographic
- Video
KEY HIGHLIGHTS
- It consists of a FEP Catheter that reduces force by 30% as compared to PTFE Catheter.
- It’s different from the other brand Cathula because of the coloring of the body unlike the other brand which has the colored cap.
- Its Luer Lock cap is connected with a blood stopper which allows air to escape & prevent spillage of blood.
- Kitkath+ is manufactured in a completely Automated Technology and goes through Vision Inspection to check Positioning & Tip of Catheter among other aspects.
Features
- 2way/1way I.V Cannula with wings.
- Low pressure injection valve facilitates extra medication while preventing its backflow.
- The valve is provided with specially designed easy to open Injection Port Cap.
- For low blood pressure patients, 2-3 seconds would be required for blood to reach flash back chamber.
- Angles and grooved wings offer easy fixation and prevent shifting & rolling of cannula in the patients body.
- Disposable, sterile, non-pyrogenic and non-toxic.
- Needle extra sharpness and thin catheter wall results in lower force and less angle to body during cannulation to avoid cross puncture of vein.
COMPONENTS
Introducer Needle
- Siliconised, beveled, back cut ground stainless steel needle
for smooth and comfortable venipuncture.
Needle Cover
- Protects the needle & catheter from contamination
Needle Hub
- I.V cannula allows blood flash back visualisation.
- Thumb rest for proper grip insertion.
Luer Lock Cap
- Permits patient mobility when infusion temporarily
discontinued.
Catheter
- Cannula is made of virgin FEP (Fluro Ethylene Propylene).
- The double-tapered formation of catheter and bevelled tip of
Cannula is designed to reduce trauma and peel-back. - High resistance to kinking without compromising
biocompatibility. - High chemical resistance reduces the chances of
thrombogenicity. - Thin wall of the catheter allows for maximum flow rate for a
specific gauge of cannula.
Blister Package
- The I.V. Cannula is packed in rigid blister and sealed in
peel open type medical grade paper packing.
Colour Code | Gauge | Catheter Ext. Diax Length (mm) | Water flow-rate (ml/min) |
Orange | 14G | 2.2 x 45 | 310 |
Grey | 16G | 1.7 x 45 | 200 |
White | 17G | 1.5 x 45 | 140 |
Green | 18G | 1.2 x 38 1.2 x 45 | 105 100 |
Pink | 20G | 1.0 x 32 | 64 |
Blue | 22G | 0.8 x 25 | 38 |
Yellow | 24G | 0.7 x 19 | 16/22 |
Violet (Without injection port) | 26G | 0.6 x 19 | 12/15 |
