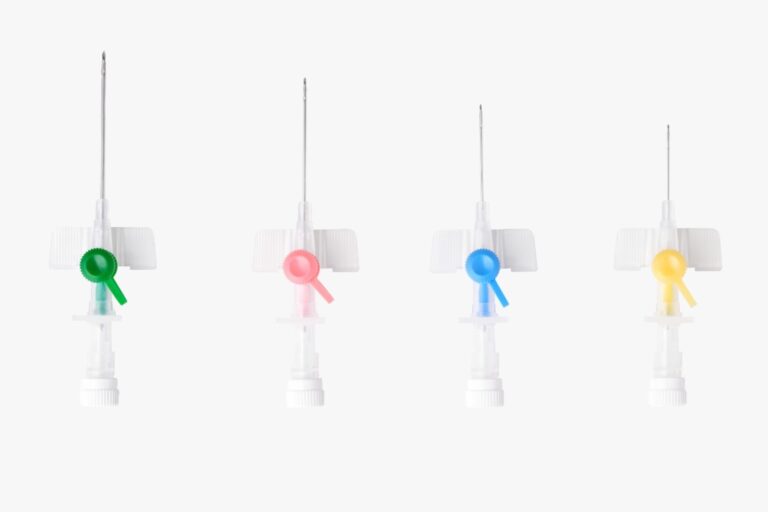

Cathula+NEO I.V.cannulas makes a technological leap into the future of medical care with a never-before range of benefits for both the patients and medical staff.
- Description
- components

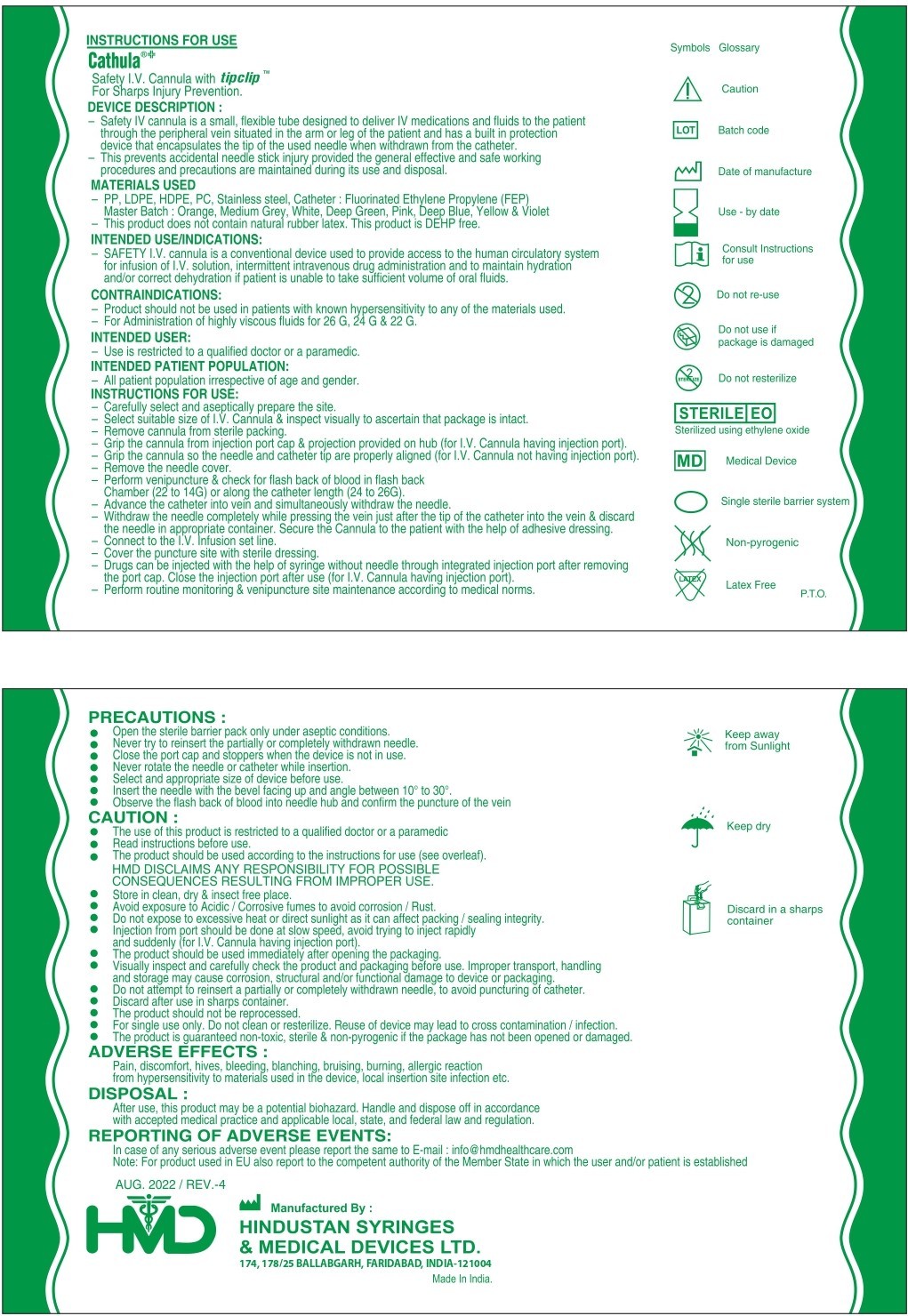

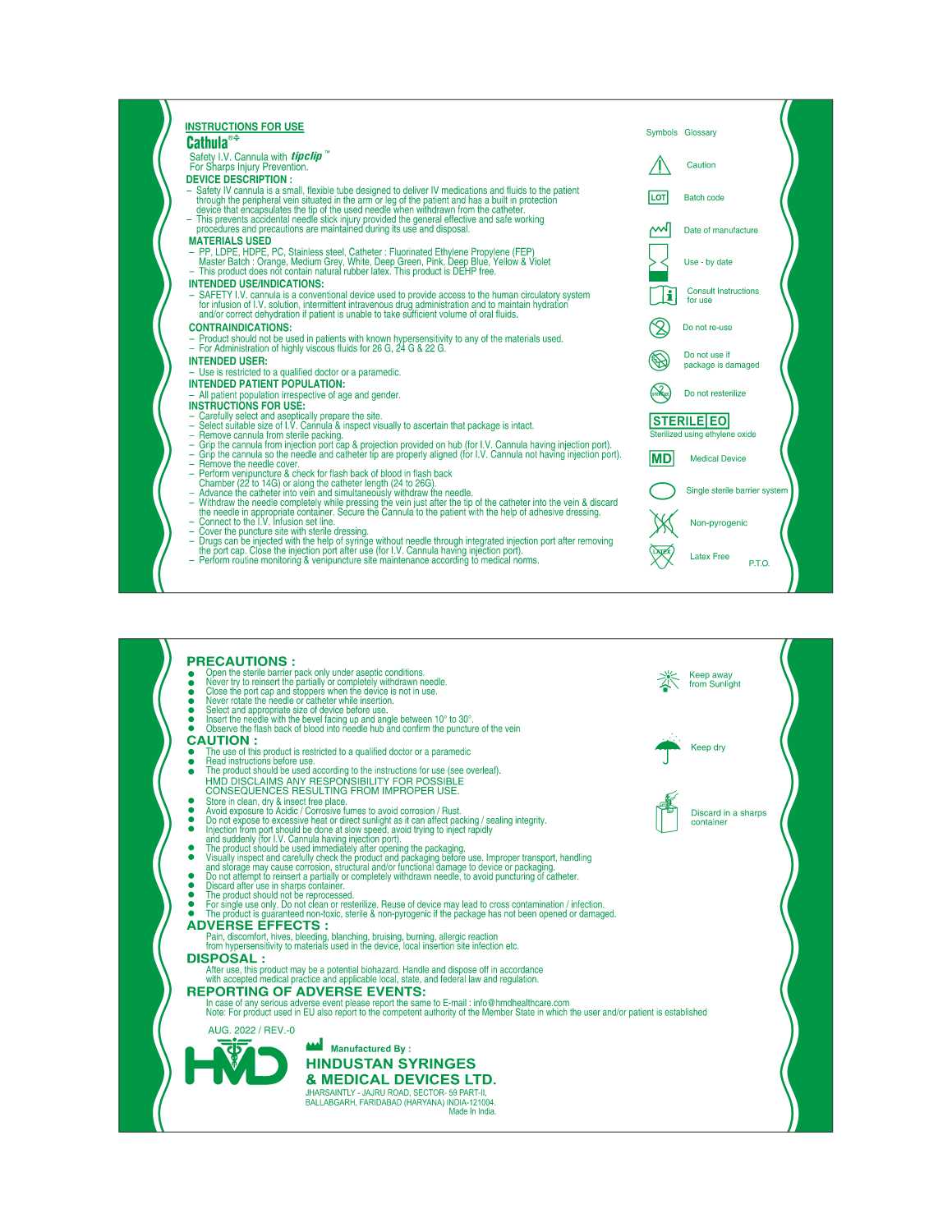

- IFU
- Infographic
- Video
This space will be updated soon
Key Highlights
-
The Wingsare made up of nontoxic, medical-grade polypropylene compatible with any medication.
-
The Injection portand the receiving end of the wing have a 6% luer taper as per ISO:80369.
-
The valve is protected with easy to open Injection Port Cap.
-
Coloured Injection Port Cap for size identification.
-
It offers a safe and convenient method of atraumatic administration of medicines.
-
Angled & grooved wings offer easy fixation and prevent shifting & rolling of the cannula in the patient’s body.
-
Single-use, sterile, non-pyrogenic, and nontoxic.
-
The Needle is made from cold-rolled stainless steel strips. The tip of the needle has a short bevel ‘back’ cut point for easy catheterization and minimal pain and risk of perforation.
Product Range
| Colour Code | Gauge | Catheter Ext. DiaxLength(mm) | Water flow-rate (ml/min) |
|---|---|---|---|
| Grey | 16G | 1.70 x 45 | 200 |
| White | 17G | 1.50 x 45 | 140 |
| Green | 18G | 1.20 x 38 1.20 x 45 |
105 100 |
| Pink | 20G | 1.00 x 32 | 64 |
| Blue | 22G | 0.80 x 25 | 38 |
| Yellow | 24G | 0.70 x 19 | 22 |
| Violet
(without Injection Port) |
26G | 0.60 x 19 | 15 |
