KITKATH I.V. Cannula

PTFE based range, each designed to meet specific infusion needs.

  • Made of PTFE

  • Provided with special low pressure injection valve.

  • One way retreating valve to facilitate extra medication and while preventing back

  • Medicine can be injected by a syringe without needle thereby reducing chances of infection and preventing needle stick Cost of needle is also saved.

  • The valve is provided with specially designed easy to open Injection Port Cap.

  • It offers safe and convenient method of atraumatic administration of medicines.

  • Angled & grooved wings offer easy fixation, preventing shifting & rolling of cannula in the patient’s body.

  • Disposable, sterile, non- pyrogenic and non-toxic.

  • Description
  • components
  • IFU
  • Infographic
  • Video

Specifications

Colour Code Gauge Catheter Ext

Length (mm)

 Water Flow Rate

(ml/min)
Orange 14G 2.20 × 45 310
Grey 16G 1.70 × 45 200
White 17G 1.50 × 45 140
Green 18G 1.20 × 38

1.20 × 45

 105

100
Pink 20G 1.00 × 32 64
Blue 22G 0.80 × 25 38
Yellow 24G 0.70 × 19 16/12
Violet 26G 0.60 × 19 12/15

Components

Introducer Needle

  • Silliconised, bevelled, back cut ground stainless steel needle for smooth and comfortable venipuncture

Needle Hub

  • I.V. cannula has full collar needle hub to prevent any destabilization and bending of the needle during insertion.
  • Thumb rest for proper grip insertion.

Needle Cover

  • Protects the needle & catheter from contamination.
  • Prevents accidental dmage to catheter and needle.

Catheter

  • Made of virgin PTFE (Poly Tetra Fluoro Ethylene) double tapered beveled tip, siliconozed catheter with radiopaque strips.
  • The double-tapered formation of catheter and beveled tip of Cannula is designed to reduce trauma and peel-back.
  • High resistance during insertion due to low coefficient of friction.
    high chemical resistance reduces the chances of thermobiogenecity.
  • Thin wall of the catheter allows maximum flow rate for a specific gauge of cannula.
  • Optimum trim distance to minimise the problem of ‘peel-back’ during insertion.

Flash Back Chamber

  • Flash back chamber allows monitoring of rapid flash of blood after venipuncture and identification of correct catheter placement.
  • Specially designed to prevent any spillage of blood.

Blister Package

  • The I.V. Cannula is packed in rigid blister and sealed in peel open type medical grade paper packing.

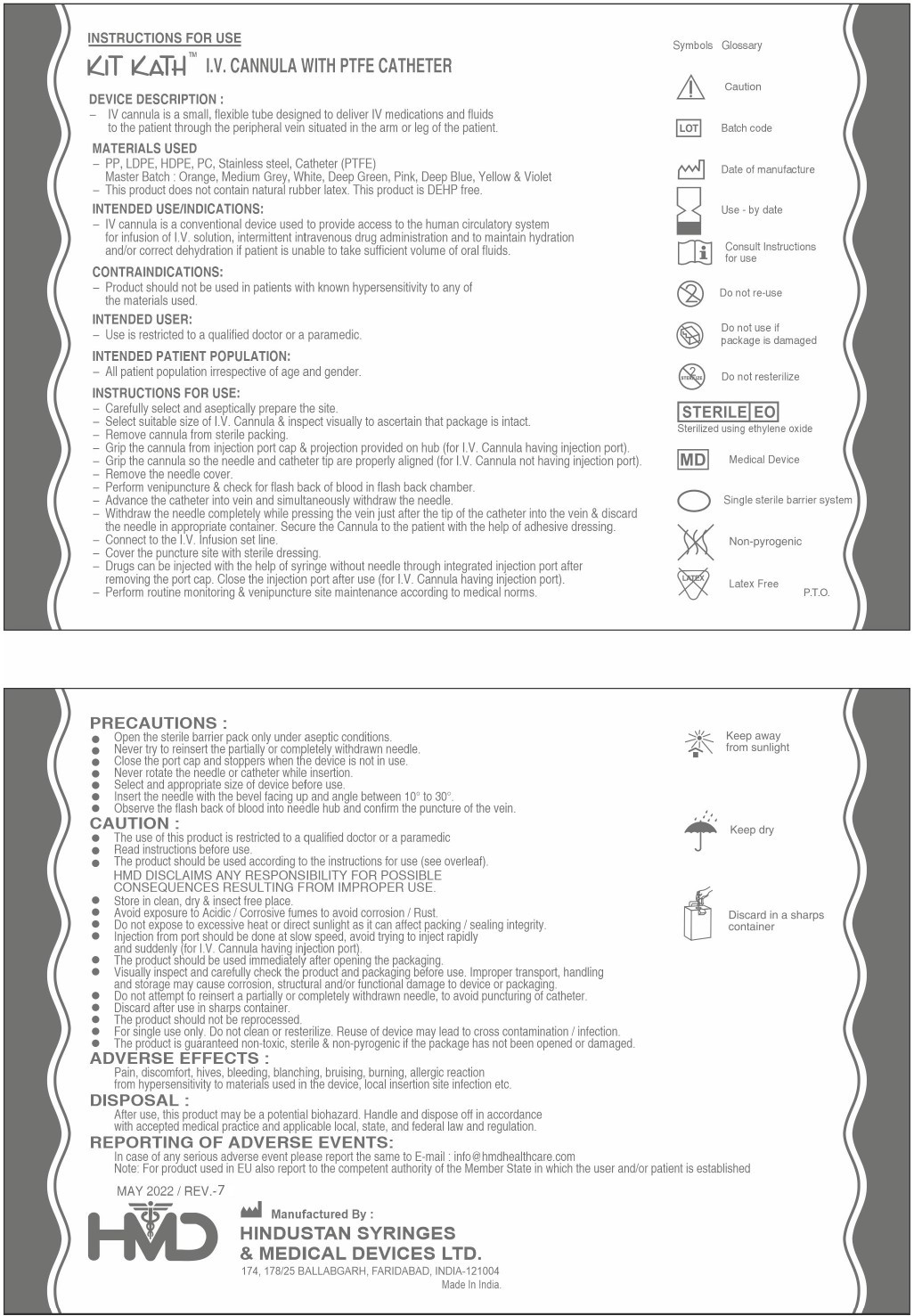

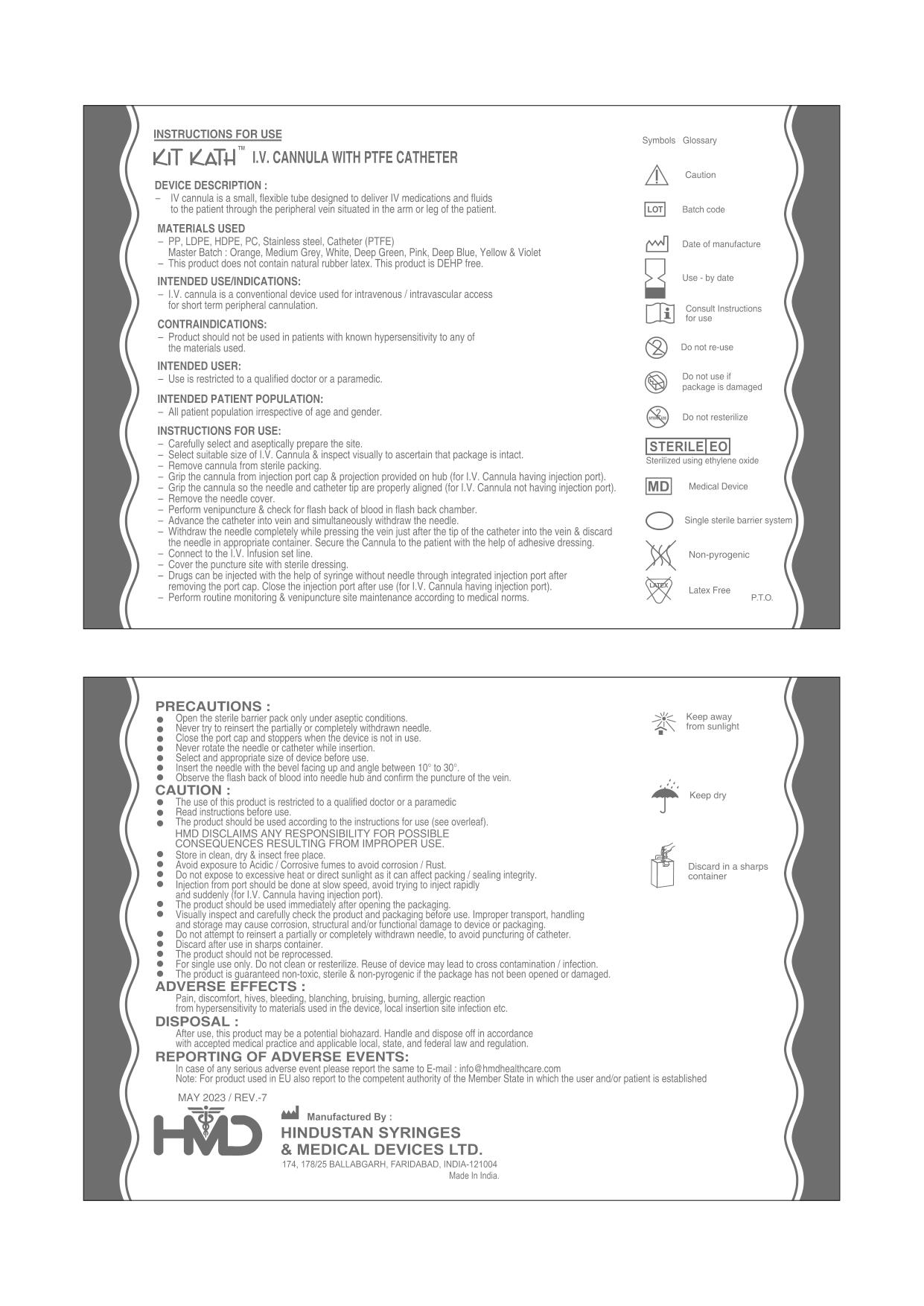

IFU Kitkath
